CMT Orange Tools Corner Beading Carbide Tipped Router Bits

Photographed in our Blythewood shop. Colors may shift slightly by monitor.

CMT Orange Tools

CMT Orange Tools Corner Beading Carbide Tipped Router Bits

★★★★★ 4.9 / 5  ·  73 verified reviews ·  Part CMT173
$30.90 – $39.00
USD · Tax calculated at checkout
● In stock — ships from Blythewood today

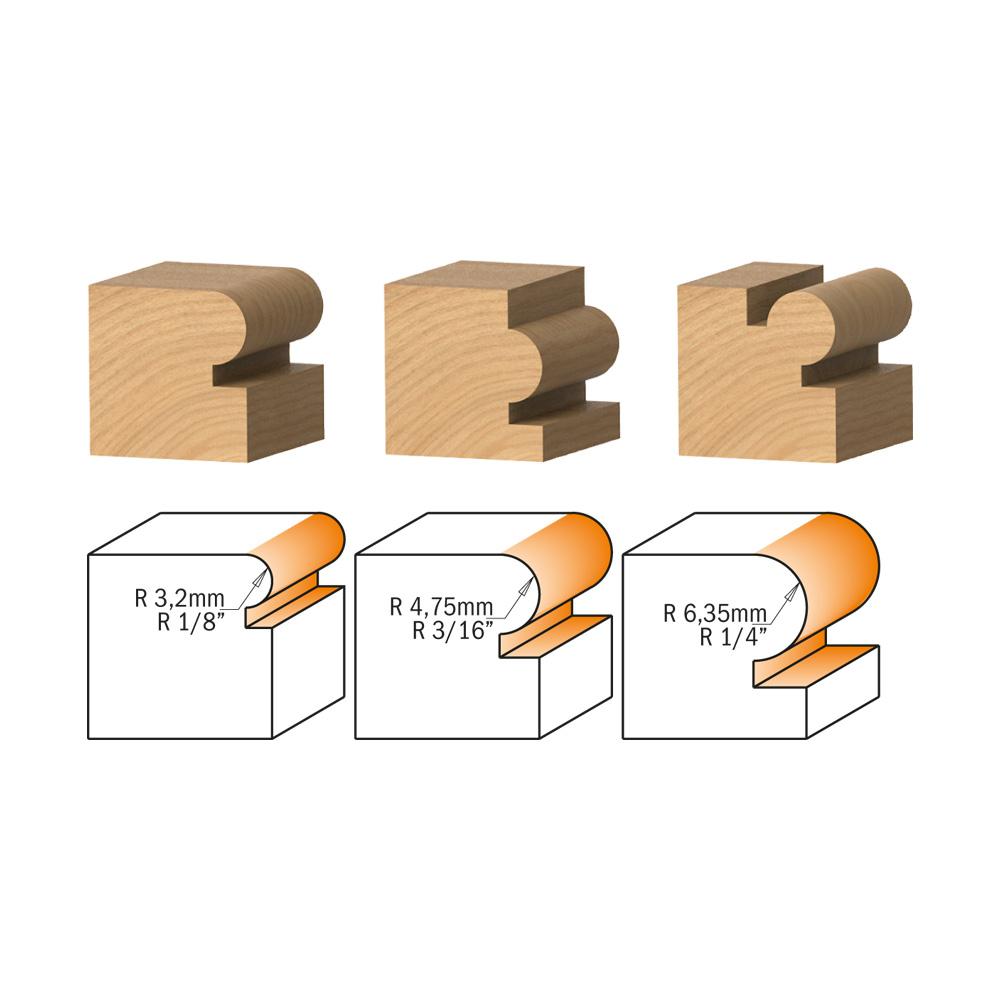

Make beautiful traditional beads and edge beads or turn old beads into new moldings with the new CMT corner beading bits with bearing. Featuring carbide-tipped cutting edges and orange PTFE non-stick coating, these bits provide excellent results on corner beads. Run the bead twice to form a complete corner bead. CMT carbide tipped router bits produce flawless profiles due to the following features: SUPERIOR HIGH STRENGTH STEEL BODIES: CMT uses only high-quality, solid bar stock sourced from Switzerland, which provides exceptional resistance to fatigue and abrasion. Larger diameter bodies are heat forged before turning into precise bit bodies. This extra step produces a radial grain orientation which offers large diameter bits extra strength and durability. All machining fully automated ensuring the shanks and bodies are accurate and perfectly balanced. ANTI-KICKBACK DESIGN: This design controls the depth of cut and minimizes the chance of kickback, reducing your risk of injury. SINTERHIP HI-DENSITY INDUSTRIAL CHROME CARBIDE: CMT uses specially formulating chrome carbide specially designed to cut wood and laminates. A new process called SinterHIP (Hot Isostatic Pressing), helps prevent material failure and increases cutting life. TRI-METAL BRAZING: CMTs silver-copper-silver brazing “sandwich” provides a tight bond between the steel and the carbide, with a shock absorbing effect to protect the carbide tips when cutting harder woods and reduces the chance of failed welds. NON-STICK ORANGE SHIELD COATING®: Prevents bit from heating up, reduces pitch build-up,...
  • Free shipping over $55
  • 30-day returns, unused
  • Ships same day before 2pm ET
  • Real phone support

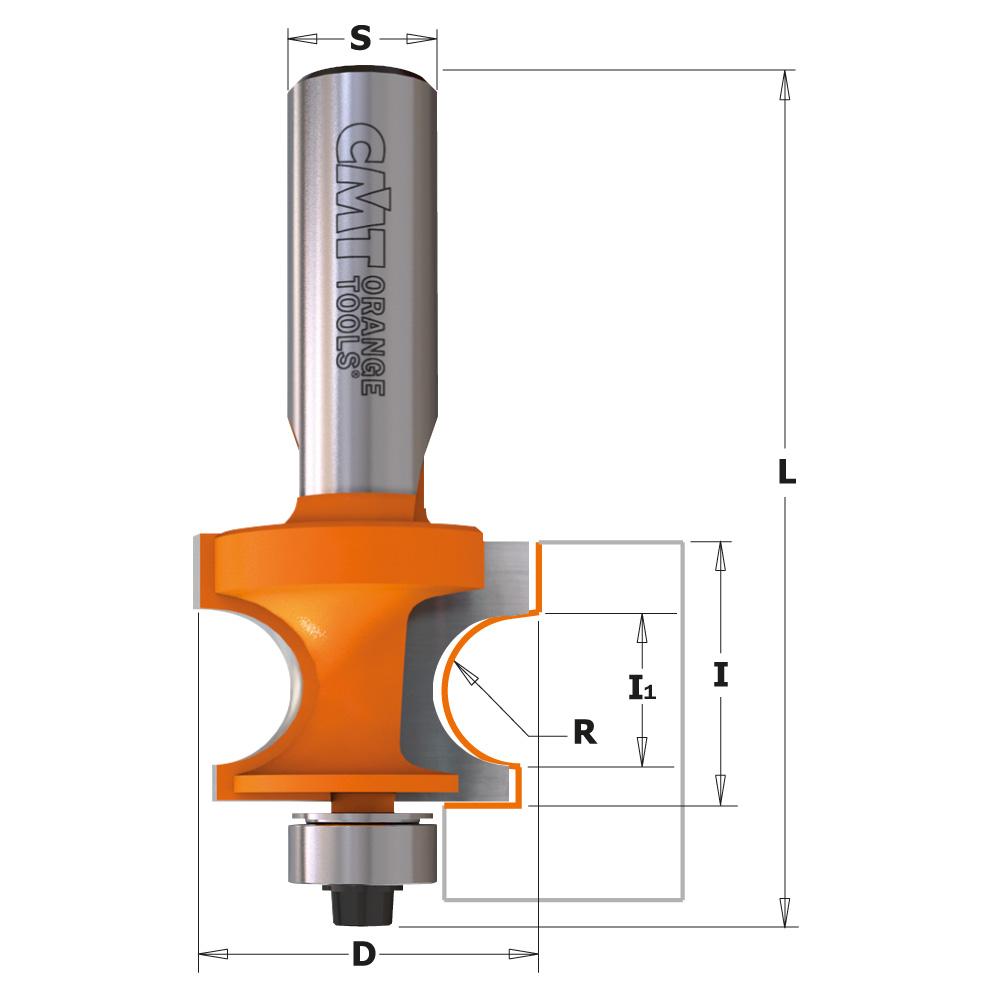

Specifications

BrandCMT Orange Tools
ModelCMT173
Shank Diameter S1/2 / 1/4
TypeEdging/Profile Bits
Diameter D1 / 7/8 / 1-1/8
Length L2-1/2 / 2-9/16 / 2-13/32 / 2-21/32 / 2-53/64
Radius R1/4 / 1/8 / 3/16
Cutting Length I7/8 / 19/32 / 47/64
Bead Diameter I11/2 / 1/4 / 3/8
SetNo
Ships FromOhio, USA

Sizes & Part Numbers

Part No.ConfigurationPrice
861.032.11D: 7/8" | L: 2-9/32" | R: 1/8" | I: 19/32" | I1: 1/4"$30.90
861.532.11D: 7/8" | L: 2-1/2" | R: 1/8" | I: 19/32" | I1: 1/4"$31.50
861.048.11D: 1" | L: 2-13/32" | R: 3/16" | I: 47/64" | I1: 3/8"$34.50
861.548.11D: 1" | L: 2-21/32" | R: 3/16" | I: 47/64" | I1: 3/8"$34.80
861.064.11D: 1-1/8" | L: 2-9/16" | R: 1/4" | I: 7/8" | I1: 1/2"$36.40
861.564.11D: 1-1/8" | L: 2-53/64" | R: 1/4" | I: 7/8" | I1: 1/2"$39.00

Micro-grain carbide, brazed clean, ground for a glassy cut.
